Description

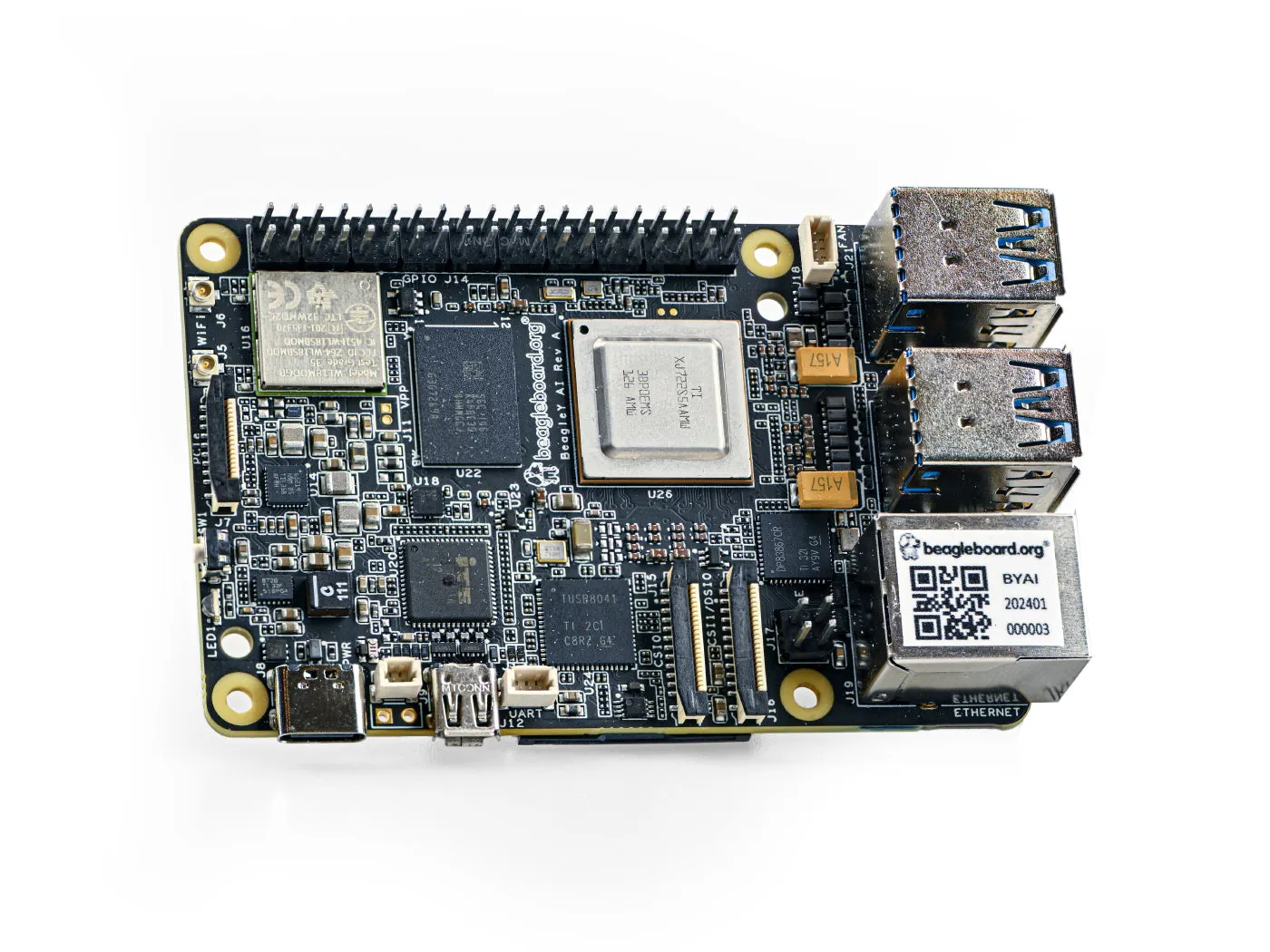

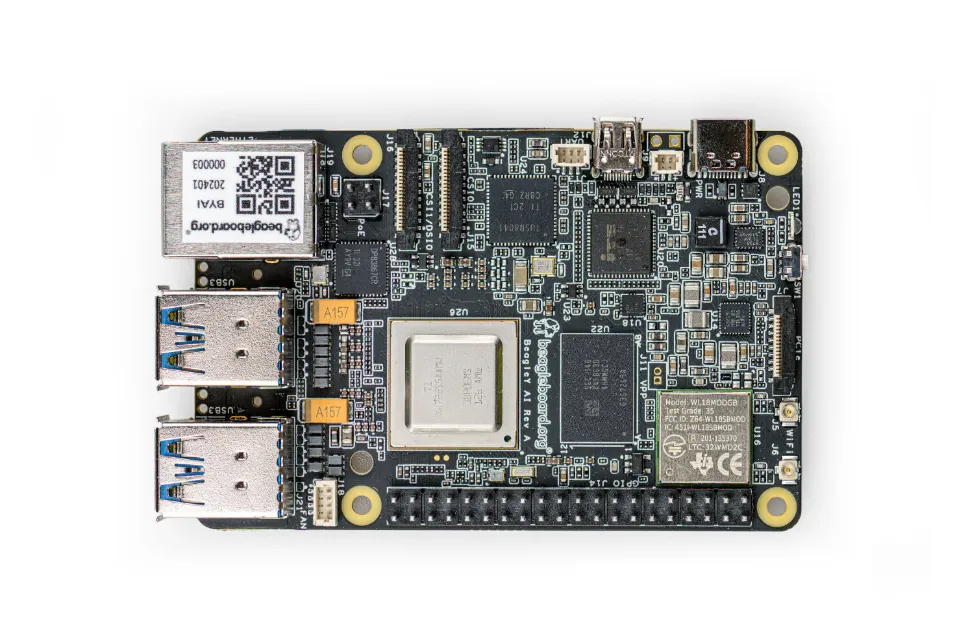

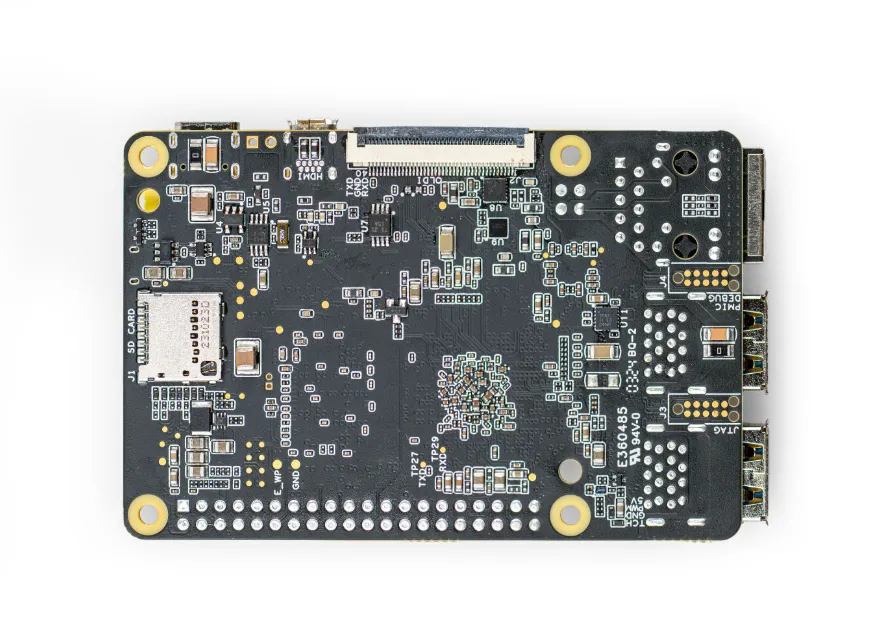

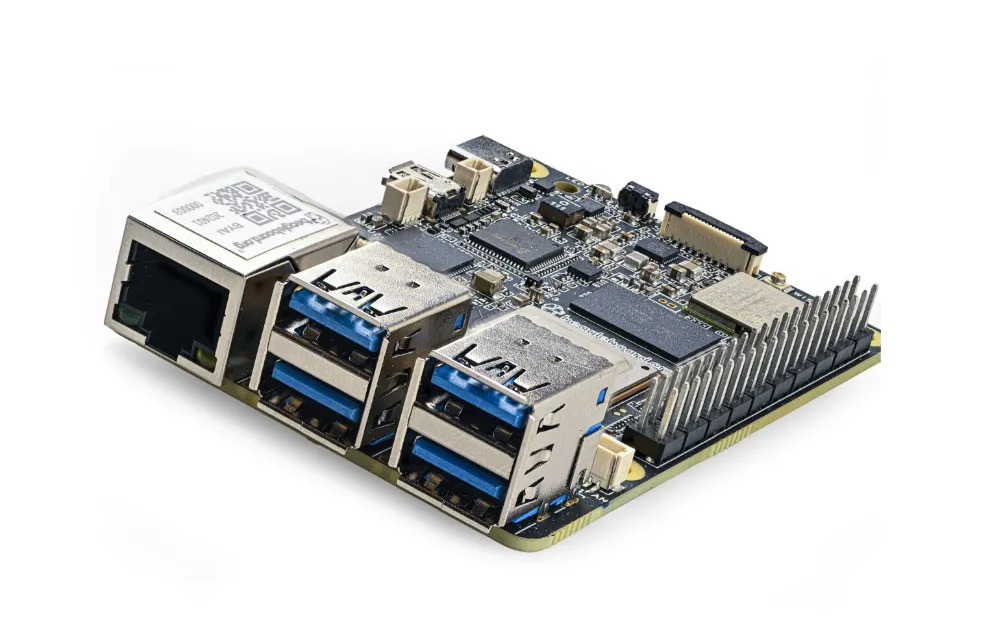

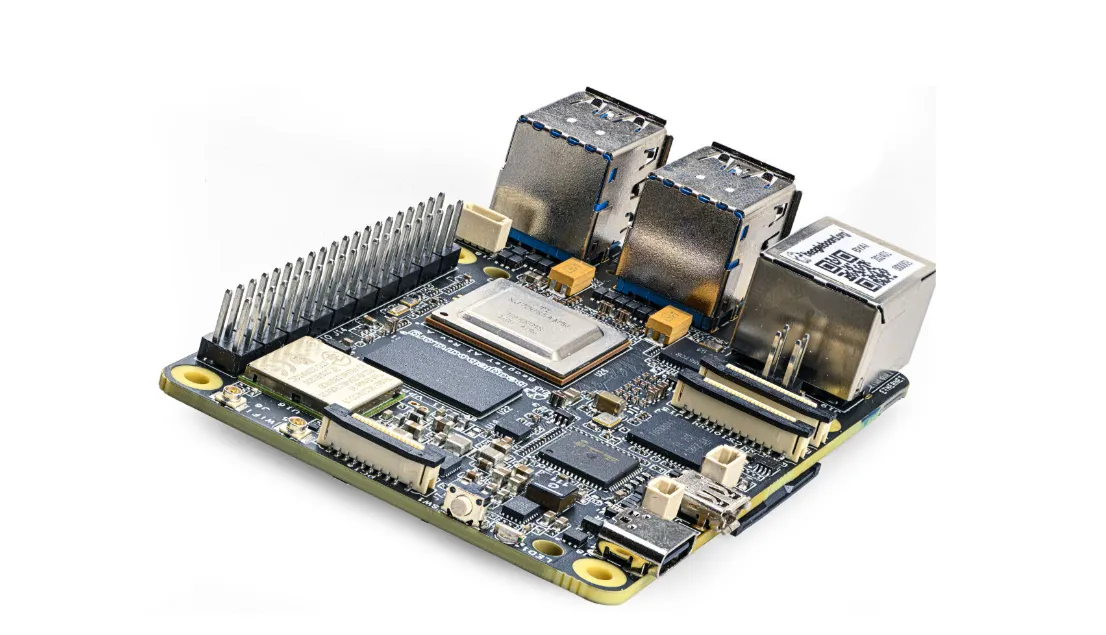

BeagleY®-AI is a single board computer launched by beagleboard.org® which is fully open source to facilitate the ecosystem of open source community.

BeagleY®-AI is powered by the innovative AM67A AI vision processor by Texas Instruments. Boasting four 64-bit Arm®Cortex®-A53 CPU cores with clock speeds up to 1.4 GHz, two C7x DSPs, and two Matrix Accelerators (MMAs), this processor delivers up to 4 TOPS of deep learning performance. It also includes a vision processing accelerator with ISP, GPU cores, and multiple Arm Cortex-R5 cores for efficient GPIO control. Maximize its capabilities through high-speed PCIe, USB3 interfaces, and versatile multimedia I/Os for cost-effective multi-camera and multi-display system designs.

BeagleY®-AI’s 40-pin expansion header enables breadboard- and solder-free system prototyping with countless compatible sensors, actuators, and connectivity add-ons. And as an open-source design, professional and advanced users are also free to modify the hardware to take control of the supply chain, manufacturing, and build derivatives that are cost-, size-, and use case-optimized.

About BeagleBoard.org® Foundation -

BeagleBoard.org® Foundation founded in 2007 is focused on developing open-source hardware platforms that foster innovation and collaboration. BeagleBoard.org® has a rich history of creating accessible, versatile, and powerful single board computers, enabling developers, hobbyists, and professionals to bring their ideas to life.

Feature

● Texas Instruments AM67A Arm-based vision processor

-Quad-core 64-bit Arm®Cortex®-A53 CPU subsystem at 1.4GHz

-Dual general-purpose C7x DSP with Matrix Multiply Accelerator (MMA) capable of 4 TOPs

-Arm Cortex-R5 subsystem for low-latency I/O and control

-GPU, video and vision accelerators, and other specialized processing capability

● Memory

-4GB LPDDR4

-microSD card socket

-Board identifier EEPROM

● Networking

-BeagleBoard.org BM3301 module

(IEEE802.11ax)

Bluetooth® 5.4 with Bluetooth Low-Energy (BLE)

-Gigabit Ethernet with power-over-Ethernet (PoE ) support via add-on

● 3 Simultaneous Displays

-microHDMI

-OLDI (LVDS) with touchscreen support

-MIPI-DSI with touchscreen support (muxed with MIPI-CSI)

● Other I/O

-PCI-Express® Gen3 x 1 interface (requires external adapter)

-4x USB3 (5Gbps) type-A host ports

-1x USB2 (480Mbps) type-C device port and power input

-40-pin expansion header

-Fan power and control connector

● Debug

-3-pin JST-SH console UART

-10-pin TAG-CONNECT JTAG header

Application

● Robotics

● Factory and Building Automation

● Test & Measurement

● Medical

● Human-Machine Interfaces (HMIs)

● Intelligent Vision

-Image Classification

-Object Detection

-Semantic Segmentation

Specification

Parameters	Description
Processor	TI AM67A, Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.4 GHz, multiple cores including Arm/GPU processors, DSP, and vision/deep learning accelerators up to 4 TOPS
RAM	4GB LPDDR4
Wi-Fi	Beagleboard BM3301, 802.11ax Wi-Fi
Bluetooth	Bluetooth Low Energy 5.4 (BLE)
USB Ports	4 x USB 3.0 Type A ports, supports 5Gbps operation 1 x USB 2.0 Type C, supports USB 2.0 device
Ethernet	Gigabit Ethernet, with PoE support (requires separate PoE HAT)
Camera/Display	1 x 4-lane MIPI camera/display transceivers 1 x 4-lane MIPI camera
Display Output	1 x HDMI display 1 x OLDI display
Real-time Clock (RTC)	Supports external RTC battery for power failure time retention
Debug UART	1 x 3-pin debug UART
Power	5V/5A DC power via USB-C, with Power Delivery support
Power Button	On/Off included
PCIe Interface	PCI-Express® Gen3 x 1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Expansion Connector	40-pin header
Fan connector	1 x 4-pin fan connector, supports PWM speed control and speed measurement
Storage	microSD card slot, supports up to ultra high-speed SDR104 mode
Tag-Connect	1 x JTAG 1 x Tag-Connect for PMIC NVM programming (test and debug purposes only)
Board Dimension	85 x 56 x 20mm
